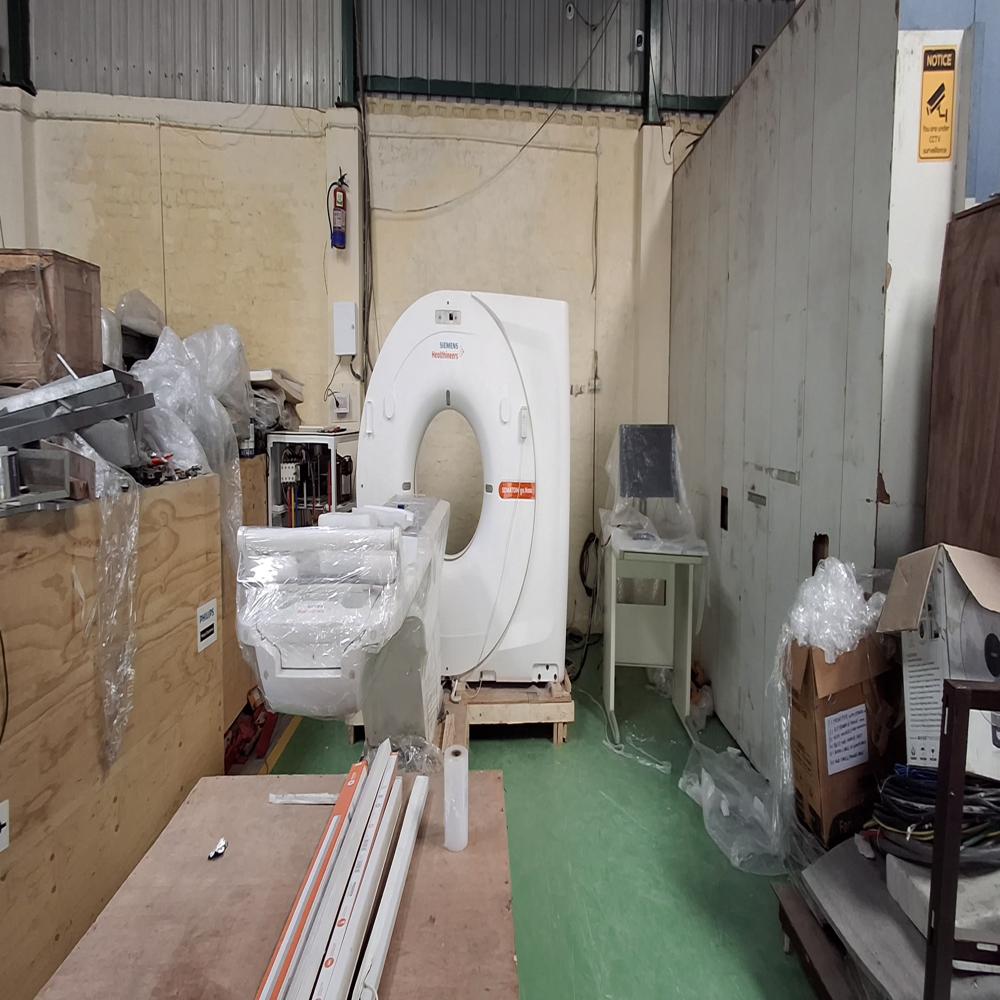

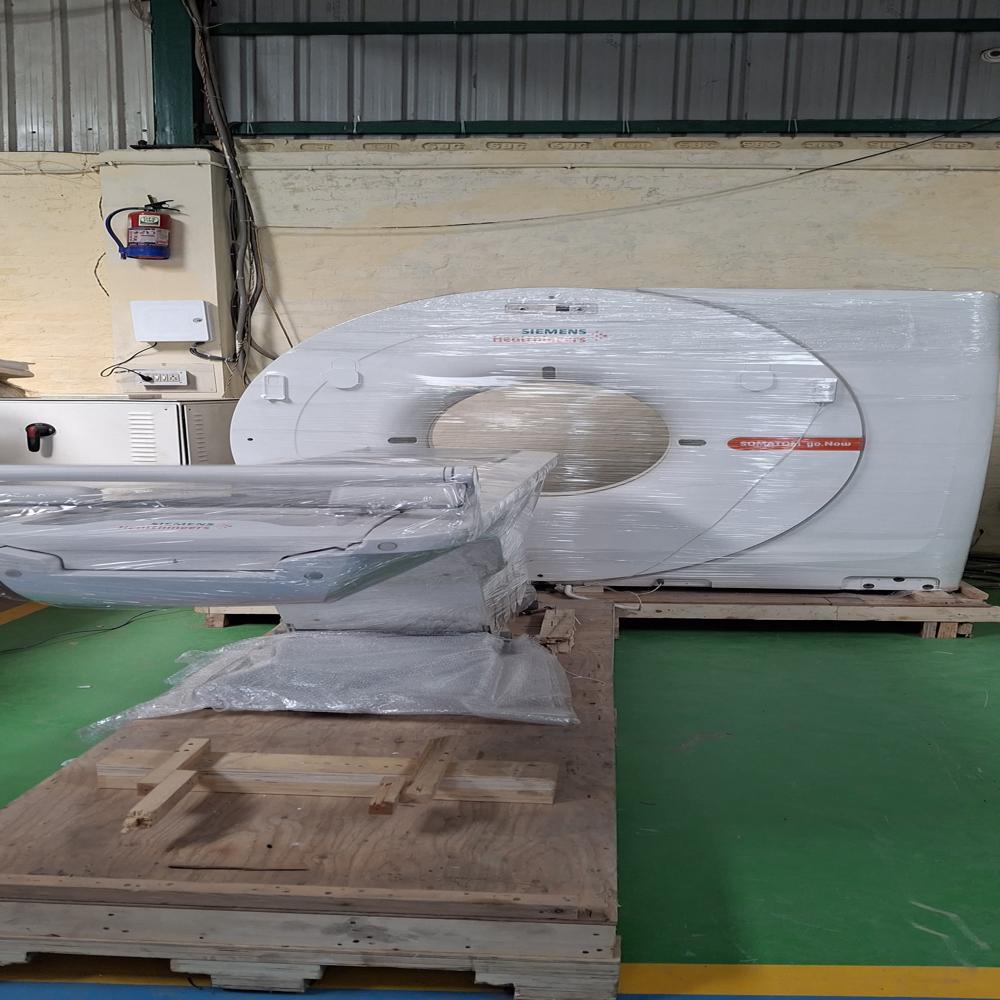

Siemens Somatom Go Now 16 Slice

About Siemens Somatom Go Now 16 Slice

The Siemens SOMATOM go.Now, part of the go. platform, is designed to deliver high-quality imaging with enhanced efficiency and patient comfort. Available in multiple configurations, this system provides reliable performance for diverse clinical needs. Below are the technical specifications for the 16/32 slice model:

General:

• Detector rows: 16 physical

• Maximum slices per rotation: 32 (using Interleaved Volume Reconstruction)

• Total detector elements: 12,288

• Reconstructed slice thickness: 0.6 10 mm

• Rotation speed: 1.0 s, 1.5 s (optional 0.8 s)

• Field of view: 50 cm (standard), 70 cm (extended)

X-ray Tube & Generator:

• Tube heat capacity: 3.5 MHU (equivalent to 8.75 MHU with SAFIRE)

• Cooling system: Air-cooled

• Generator power: 32 kW (up to 80 kW equivalent with SAFIRE)

• Voltage range: 80, 110, 130 kV

• Current range: 10 240 mA (extendable to 400 mA)

Gantry & Patient Table:

• Gantry aperture: 70 cm

• Gantry weight capacity: up to 1,400 kg

• Maximum table load: 227 kg

• Scannable range: up to 160 cm

• Mobile workflow: Tablet-based scanner control allows operators to stay closer to patients.

• AI-driven automation: myExam Companion ensures standardized and consistent scan results.

• Dose optimization: SAFIRE iterative reconstruction and CARE Dose4D significantly reduce radiation exposure.

• Clinical versatility: Supports a broad range of applications, including angiography and neuroimaging.

• Artifact reduction: Integrated metal artifact reduction for superior image clarity.

• Patient comfort: Built-in camera and ambient mood lighting create a more relaxed scanning enviro The Siemens SOMATOM go.Now, part of the go. platform, is designed to deliver high-quality imaging with enhanced efficiency and patient comfort. Available in multiple configurations, this system provides reliable performance for diverse clinical needs. Below are the technical specifications for the 16/32 slice model:

  Technical Specifications

  General:

  • Detector rows: 16 physical

  • Maximum slices per rotation: 32 (using Interleaved Volume Reconstruction)

  • Total detector elements: 12,288

  • Reconstructed slice thickness: 0.6 10 mm

  • Rotation speed: 1.0 s, 1.5 s (optional 0.8 s)

  • Field of view: 50 cm (standard), 70 cm (extended)

  X-ray Tube & Generator:

  • Tube heat capacity: 3.5 MHU (equivalent to 8.75 MHU with SAFIRE)

  • Cooling system: Air-cooled

  • Generator power: 32 kW (up to 80 kW equivalent with SAFIRE)

  • Voltage range: 80, 110, 130 kV

  • Current range: 10 240 mA (extendable to 400 mA)

  Gantry & Patient Table:

  • Gantry aperture: 70 cm

  • Gantry weight capacity: up to 1,400 kg

  • Maximum table load: 227 kg

  • Scannable range: up to 160 cm

  Key Features & Software

  • Mobile workflow: Tablet-based scanner control allows operators to stay closer to patients.

  • AI-driven automation: myExam Companion ensures standardized and consistent scan results.

  • Dose optimization: SAFIRE iterative reconstruction and CARE Dose4D significantly reduce radiation exposure.

  • Clinical versatility: Supports a broad range of applications, including angiography and neuroimaging.

  • Artifact reduction: Integrated metal artifact reduction for superior image clarity.

  • Patient comfort: Built-in camera and ambient mood lighting create a more relaxed scanning envi

• nment.
